Concept Pro

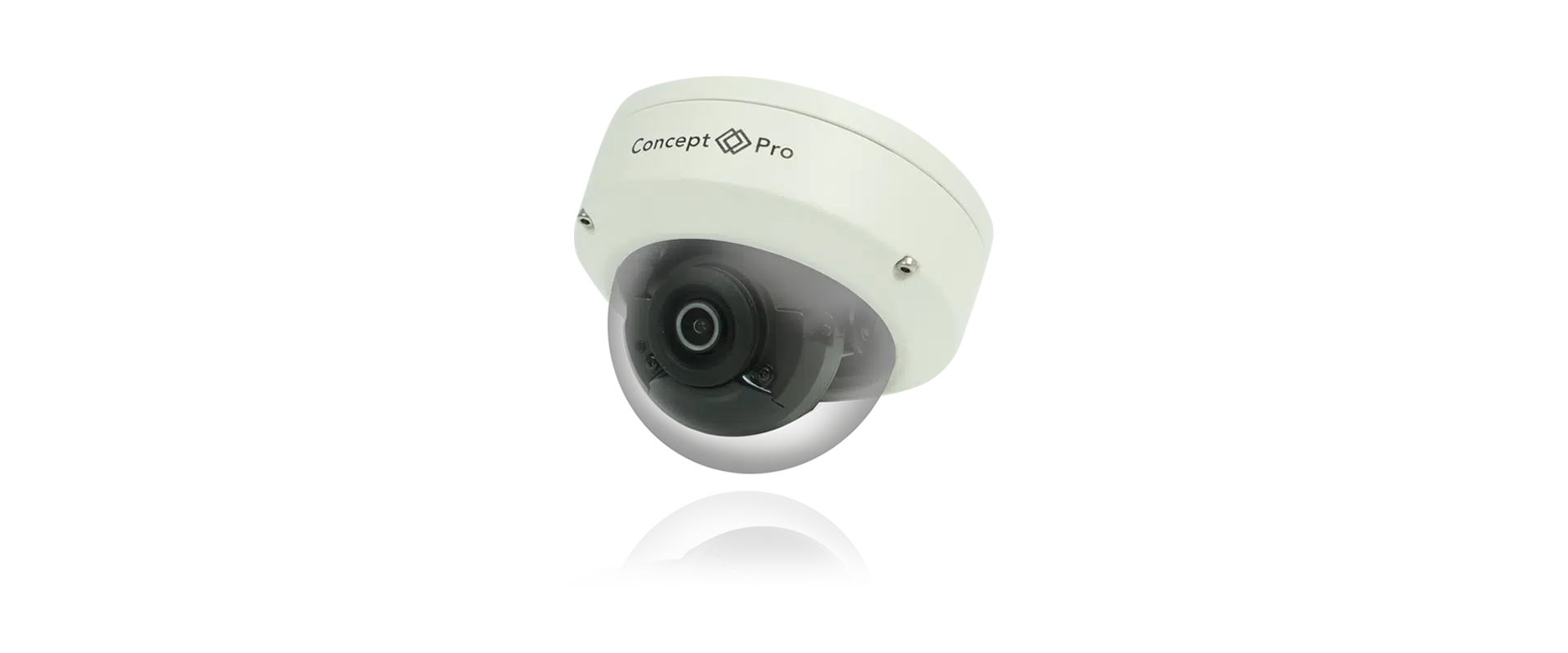

2MP AHD Fixed External Compact Vandal Dome Camera (4mm)

SKU: CVP5325IREL-AHD2M/4

  • Camera Type

    Compact Vandal Dome

  • Illumination / Range

    Up to 30m Smart IR Illumination

  • Lens Type

    4mm Fixed

  • Resolution

    2MP

  • Analytics

    N/A

  • Alarm & Audio Out

    N/A

The CVP5325IREL-AHD2M/4 model is a 4-in-1 analogue camera that has been designed to deliver the highest image quality for demanding external environments. This weather-resistant compact external dome features a 4mm fixed lens, smart infrared LEDs with 20millumination range, and provides crisp 2 megapixel video at real-time frame rates with true wide dynamic range and enhanced low light performance. This camera is also designed for excellent compatibility with the range of hybrid digital video recorders.

Dimensions: Ø114mm × (H) 81.8mm

Other Key Features

  • NDAA Compliant
  • Max. 25FPS @ 5MP
  • 4mm Fixed Lens
  • 4-in-1 (AHD/TVI/CVI/CVBS)
  • Enhanced Low Light Performance
  • Up to 30m Smart IR Illumination
  • True Wide Dynamic Range
  • DC12V/AC24V Power Input& DC12V Power Output
  • Up the COAX Support
  • AGC, Sens-up, AWB, BLC, HLC, Defog
  • IP66-rated
  • 4-in-1 (AHD/TVI/CVI/CVBS)
  • Smart IR
  • 4mm Fixed Lens Camera
  • 2MP Resolution
  • IP66
  • True Wide Dynamic Range
  • Vandal Resistant
  • Tri-Axis Gimble
  • Internal cable connections
  • Enhanced Low Light
  • True Wide Dynamic Range

With true wide dynamic range this camera can capture sharp images throughout the entire field of view, even when there are severe differences between light levels.

  • Enhanced Low Light

This CCTV camera utilises an Enhanced Low Light CMOS sensor with greater light sensitivity, resulting in the camera capturing colour images long after standard CCTV cameras have switched to black & white night mode.

  • DC12V Power Output

This CCTV camera also provides a DC12V 100mApower output that can be conveniently used to power some auxiliary equipment rather than using a separate power supply adapter.

Datasheet

  • Technical Datasheet 2022
    English
    Format PDF (447 KB)

    Format PDF (447 KB)

Specifications

Dimensions

All meaurements are in mm.

fixed lens compact dome camera
