Concept Pro
12MP IP Fisheye Camera
SKU: CBP360-IP12M
-
Camera Type
Fisheye Camera
-
Illumination / Range
Up to 15m IR Illumination
-
Lens Type
360 degree Fisheye
-
Resolution
12MP
-
Analytics
N/A
-
Alarm & Audio Out
N/A
The Concept Pro CBP360-IP is an up to 12MP resolution 360 degree IP fisheye camera with built-in de-warping and 15m IR range. Designed for IP surveillance requirements that need to cover the entirety of a scene but have limited space to install multiple cameras. From a single ultra-wide angle lens the camera can transmit a 360 degree image of the scene and split it in up to 4 separate images using its virtual PTZ feature. Compatible with all Concept Pro NVRs, this camera is a cost-effective solution as either a part of a larger IP CCTV system or as a standalone alternative.
Dimensions: (Ø) 120mm × (H) 94.8mm
Other Key Features
- 15m IR Range
- Up to 12MP Resolution
- Edge Storage Option. On Board Recording via Micro SD Card – Max. 128GB
- IK10 and IP66 Rated
- ONVIF 2.6 (Profile S)
- Surround 360° View
- 180° Horizontal ./ Vertical
- 12V DC / 24V AC or PoE
- True Day Night with ICR Cut filter
- PoE
-
ONVIF Compliant
-
Power over Ethernet
-
Alarm in/out
-
Audio in/out

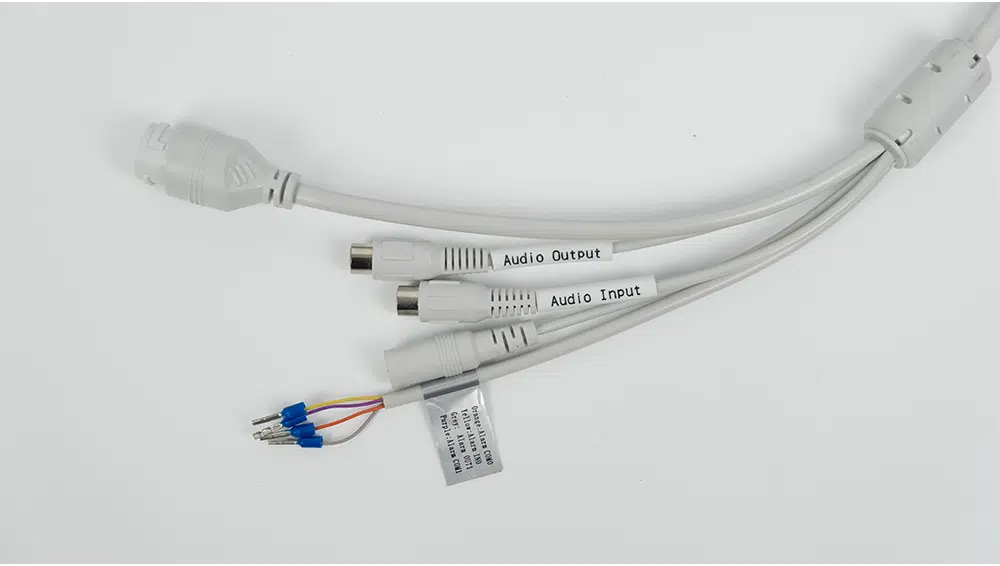

All of the cameras inputs, including POE/Video, Audio, Alarms and Power are combined into one integrated cable.
The CBP360-IP12M can display three separate camera angles from its single camera lens using on-board camera de-warping.
This CCTV camera conforms to the ONVIF core specification that aims to standardise the network interface between all IP Security Products.
Accessories
Associated & Supporting Products:
Datasheet
-
Technical Datasheet 2022
English
Format PDF (461 KB)Format PDF (461 KB)
Specifications
Dimensions
All meaurements are in mm.
