Concept Pro

5MP IP 2.8mm Fixed Lens Colour Smart Bullet Camera

SKU: AIR3525DLCS-IP5M/2.8

  • Camera Type

    Bullet Camera

  • Illumination / Range

    Up to 20m Warm LED Light

  • Lens Type

    2.8mm Fixed

  • Resolution

    5MP

  • Analytics

    Deep Learning Video Analytics

  • Alarm & Audio I/O

    N/A

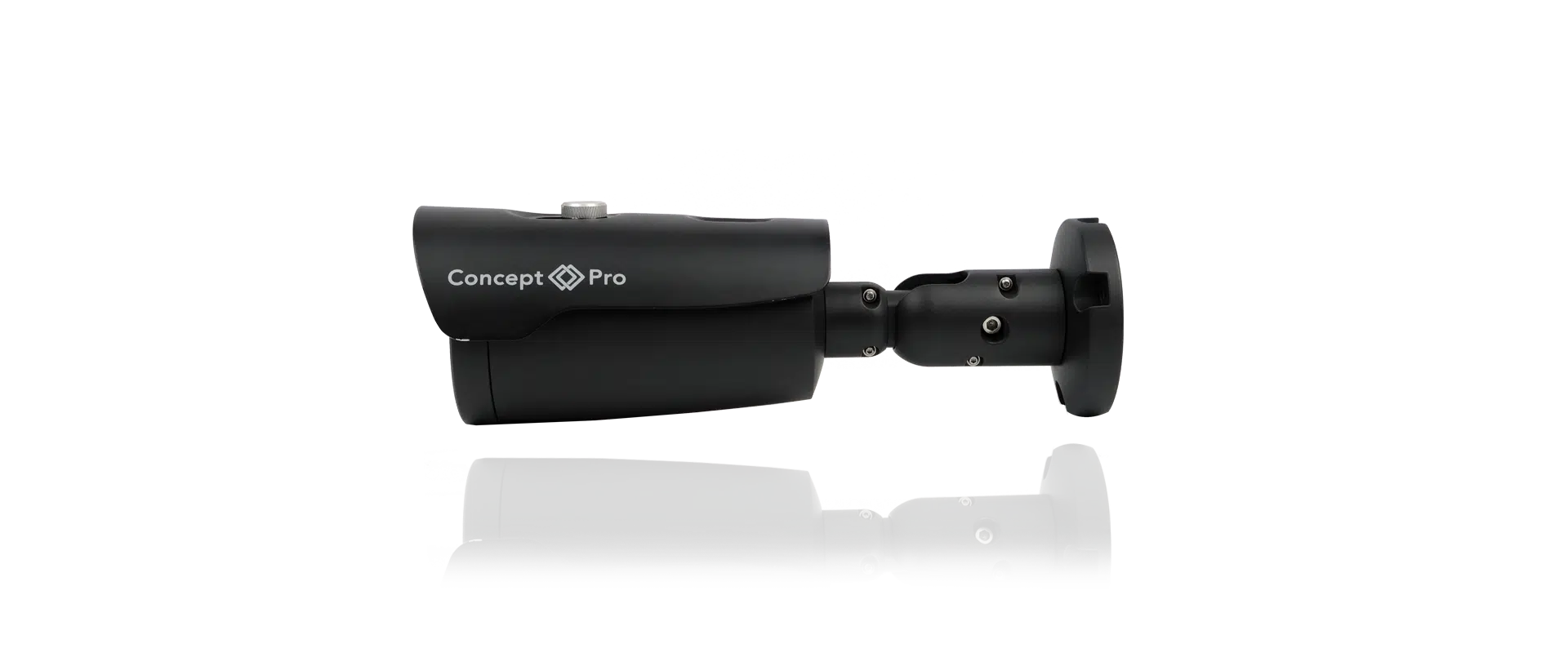

The AIR3525DLCS-IP5M/2.8 model is a professional IP camera designed to provide high quality, full colour images in demanding external environments. This weather resistant external small bullet features a 2.8mm fixed lens with F1.0 super aperture iris, warm light LEDs with 20m illumination range, and can provide crisp 5-megapixel images with excellent colour accuracy. It also comes equipped with a full suite of Deep Learning video analytics features to reduce false alarms. This camera is designed for excellent compatibility with the Concept Pro range of network video recorders.

Dimensions: (Ø) 66mm × (L) 209mm

Other Key Features

  • NDAA Compliant
  • Max. 25FPS @ 5MP
  • 2.8mm Fixed Lens
  • F1.0 Super Aperture
  • 24/7 Full Colour Image
  • 20m Warm Light Illumination
  • Deep Learning Video Analytics
  • Alarm & Audio I/O
  • PoE/DC12V Power Input
  • True WDR, ATW, BLC, Defog, 3D-DNR
  • VBR+ Smart Bit Rate Control & ROI
  • ONVIF Compliant
  • Smart IR
  • Tri-Axis Gimble
  • Motorised Zoom
  • 5MP Resolution
  • Deep Learning Motion Detection
  • Deep Learning Video Analytics
  • True Wide Dynamic Range
  • IP66
  • Corridor mode
  • Enhanced Low Light
  • Colour Smart: 24/7

This model combines an Enhanced Low Light image sensor, F1.0 super aperture iris-equipped lens, and built-in warm light LEDs with 20m illumination range to provide 24/7 colour video monitoring. The image sensor and lens allow for greater light capture in environments with ambient light. When ambient light is not sufficient for superior colour imaging, the built-in warm light LEDs automatically turn on to continue providing excellent video with true colour accuracy. In addition, an intelligent anti-overexposure algorithm is used to automatically adjust supplemental lighting levels depending on the environment and how close moving objects are to the camera, ensuring object details are visible even when moving closer to the camera.

  • Intelligent, Efficient Bit Rate Control

Reduce camera streaming bit rates by up to 90% by using Variable Bit Rate (VBR) or VBR+ smart bit rate control settings. These dynamic features maximise overall image quality while minimising camera stream bit rates. This results in lower network bandwidth usage and extended recording storage retention time.

  • Deep Learning Video Analytics

Reduce false motion detection alarms by up to 95% using new Deep Learning technology. Trained with powerful deep learning algorithms, the camera can detect and classify human, car, and bicycles based upon specific line/zone and timing criteria. As a result, false alarms from sources such as lights, animals, foliage, weather, and other objects are effectively filtered and reduced. Additionally, this camera supports Deep Learning Motion Detection with human classification to reduce false alarms on traditional motion detection events.

Datasheet

  • Technical Datasheet 2022
    English
    Format PDF (56 KB)

    Format PDF (56 KB)

Specifications

Dimensions

All meaurements are in mm.

technical-drawing

Downloads

  • Technical Datasheet 2022
    English
    Format PDF (972 KB)

    Format PDF (972 KB)

  • Concept Pro Brochure 2022
    English
    Format PDF (27 MB)

    Format PDF (27 MB)
