Concept Pro

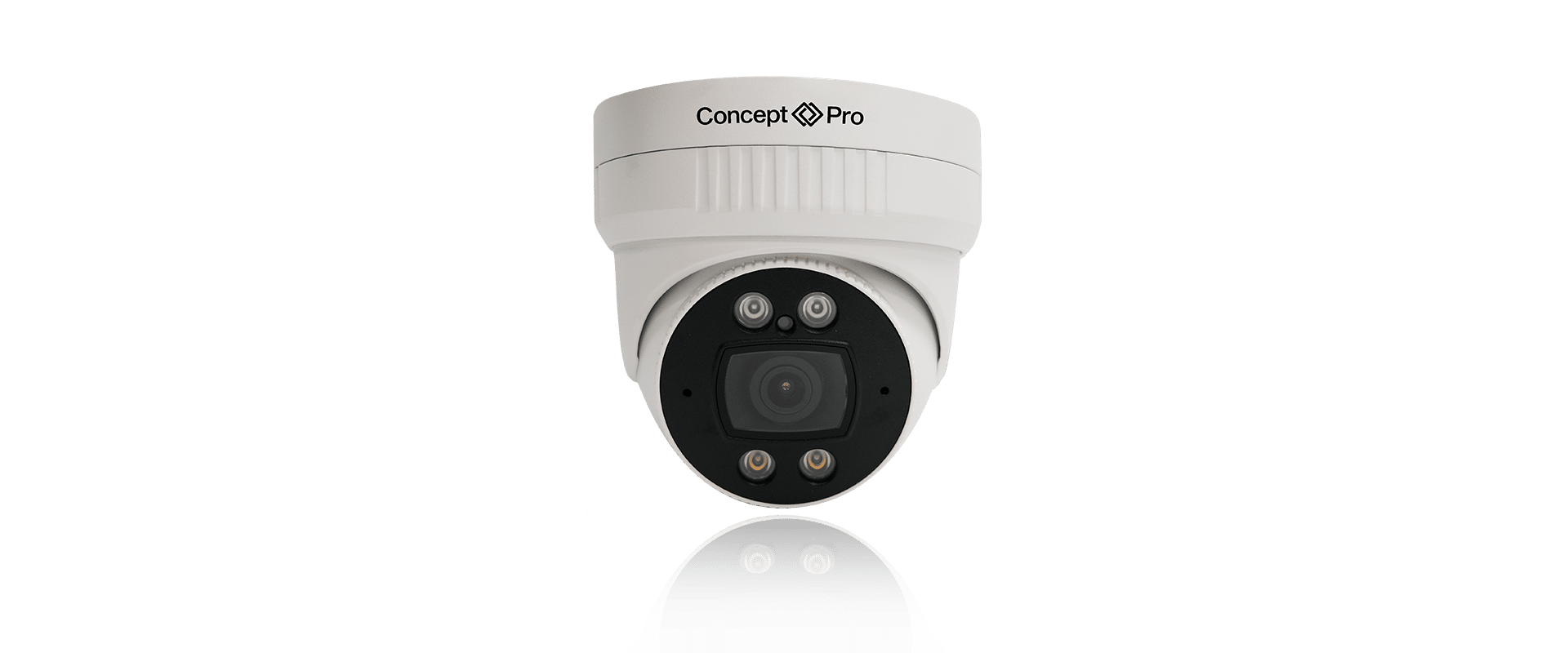

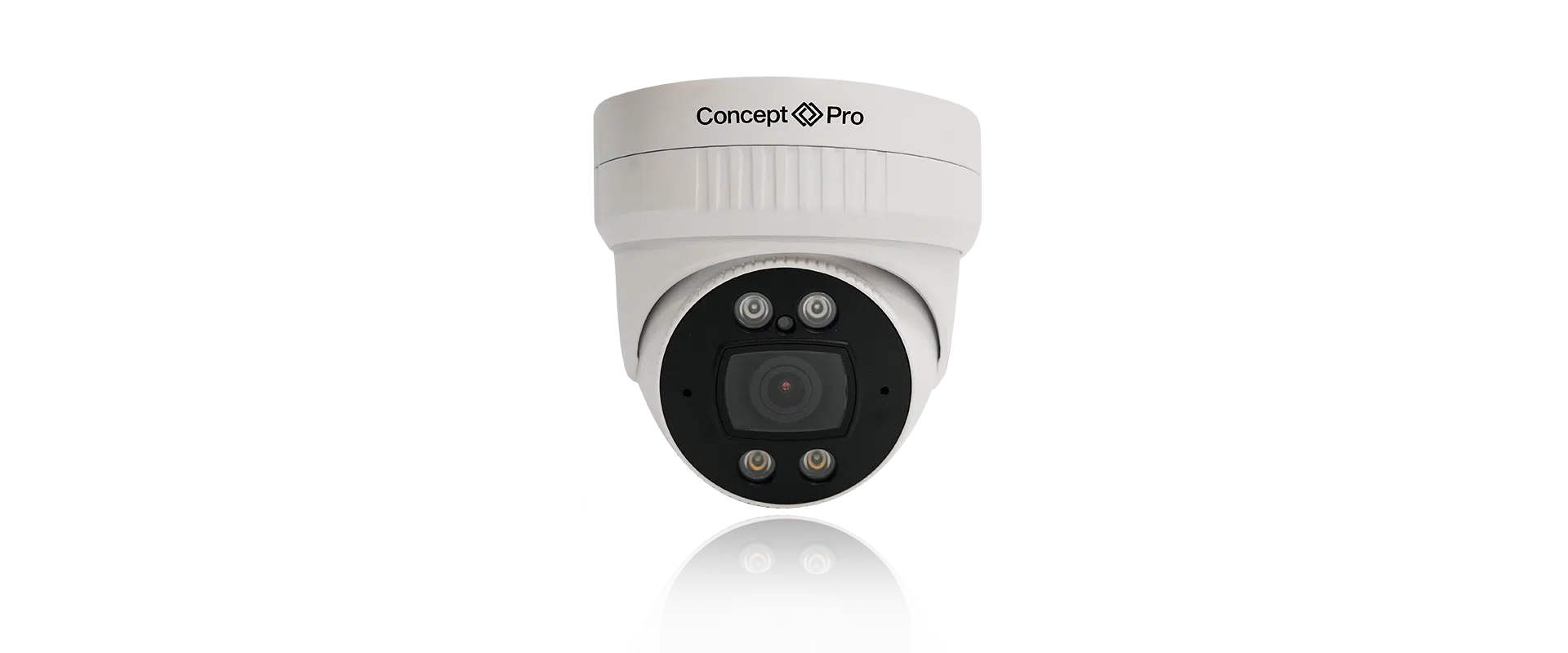

Concept Pro 5MP IP DeterSmart Fixed Eyeball Camera in White
SKU: CVP9329DS-IP5M/3.2

-
Camera Type
Turret Camera
-
Illumination / Range
30m Dual White + IR LED Illumination
-
Lens Type
3.2mm Fixed
-
Resolution
5MP
-
Analytics
Deep Learning Video Analytics & Motion Detection
-
Alarm & Line Audio Interface
Yes
The CVP9329DS-IP5M/3.2 model is a professional IP camera designed to provide high quality images in demanding external environments. This weather resistant external eyeball camera features a 3.2mm fixed lens with F1.3 wide aperture and 30m dual white light and infrared illumination to capture excellent 5-megapixel video with excellent colour accuracy. This camera also supports Deter Smart features, these features provide the option for an audible warning played from the cameras built in speaker and a visual deterrent from the white, red or blue warning lights. These features can result in reduced incidents on site.
Dimensions: (Ø) 120mm × (H) 94.8mm
Other Key Features
- NDAA Compliant
- Max. 30FPS @ 5-megapixel (2592×1944)
- 3.2mm Fixed Lens
- 30m Dual White + IR LED Illumination
- Built-in Speaker & Microphone
- Red/Blue LED Warning Light
- Deep Learning Video Analytics
- Deep Learning Motion Detection
- Alarm & Line Audio Interface
- PoE/DC12V Power Input
- H.265/H.264 Video Compression
- True WDR, BLC, 3D-DNR, ATW, AGC, ROI
- VBR+ Smart Bit Rate Control
- IP67-rated Ingress Protection
- ONVIF Profile S
-
ONVIF Compliant
-
Smart IR
-
5MP Resolution
-
Audio in/out
-
5MP Resolution
-
Deep Learning Motion Detection
-
Built in microphone
-
VBR+
-
Power over Ethernet
-
IP67
Configure accurate event rules with event triggers that provide active deterrence on site. This camera has built-in red/blue warning lights that can be programmed to flash when events are detected. It also has a built-in speaker that can conveniently be programmed to play pre-loaded audio alert messages. Custom audio files can also be uploaded to the camera through its web user interface. When combined with Deep Learning video analytics rules, this camera can be a powerful addition to a site’s security suite.


This camera has built-in white light and infrared illumination capabilities, with up to 30 meters of illumination. The camera can be programmed to use infrared or white light illumination at night, with white light ideal for sites that desire 24/7 full colour video. Additionally, the white light can be configured to turn on when events are detected, reducing light pollution.
Reduce false motion detection alarms by up to 95% using new Deep Learning technology. Trained with powerful deep learning algorithms, the camera can detect and classify human, car, and bicycles based upon specific line/zone and timing criteria. As a result, false alarms from sources such as lights, animals, foliage, weather, and other objects are effectively filtered and reduced. Additionally, this camera supports Deep Learning Motion Detection with human classification to reduce false alarms on traditional motion detection events.


Accessories
Associated & Supporting Products:
Datasheet
-
Technical Datasheet
English
Format PDF (518 KB)Format PDF (518 KB)
Specifications

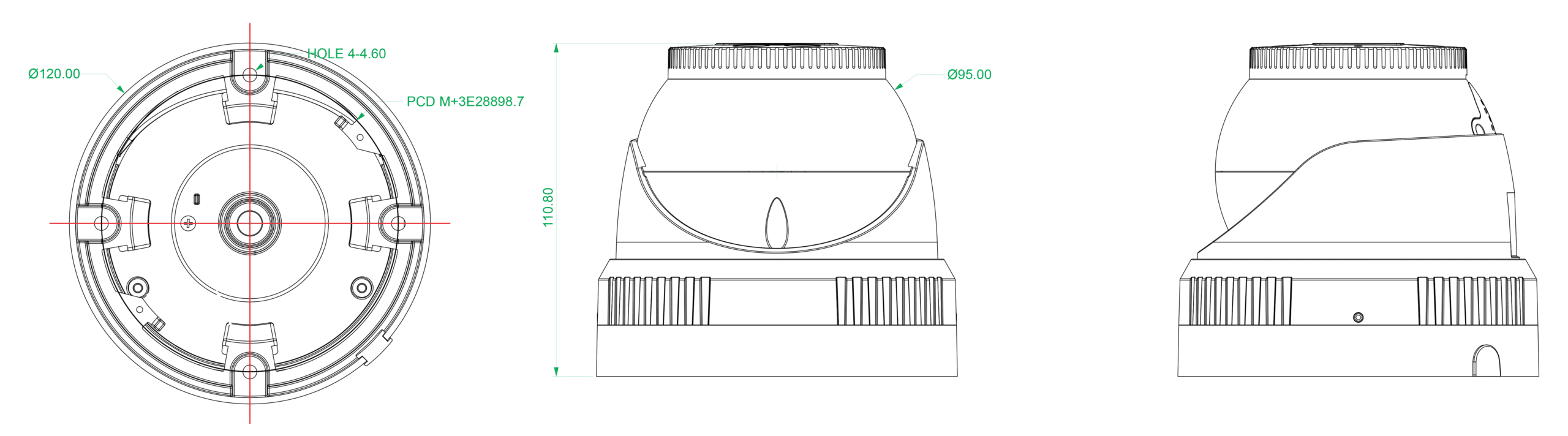

Dimensions
All meaurements are in mm.
