Concept Pro

2MP AHD Varifocal Internal Dome Camera

SKU: CBP6325EL-AHD2M

motorised zoom dome
motorised dome

  • Camera Type

    Internal Dome

  • Illumination / Range

    Up to 30m Smart IR Illumination

  • Lens Type

    2.8-12mm Manual Varifocal

  • Resolution

    2MP

  • Analytics

    N/A

  • Alarm & Audio Out

    N/A

The CBP6325EL-AHD2M model is a 4-in-1 analogue camera that has been designed to deliver the highest image quality for demanding internal environments. This internal dome features a 2.8-12mm varifocal lens and provides crisp 2-megapixel video at real-timeframe rates with true wide dynamic range and enhanced low light performance. This camera is also designed for excellent compatibility with the Concept Pro range of hybrid digital video recorders.

Dimensions: Ø151.4mm x (H)109.3mm

Other Key Features

  • NDAA Compliant
  • Max. 25FPS @ 2MP
  • 4-in-1 (AHD/TVI/CVI/CVBS)
  • 2.8-12mm Varifocal Lens
  • Enhanced Low Light Performance
  • True Wide Dynamic Range
  • DC12V/AC24V Power Input& DC12V Power Output
  • Up the COAX Support
  • AGC, Sens-up, AWB, BLC, HLC, Defog
  • IP66-rated
  • 4-in-1 (AHD/TVI/CVI/CVBS)
  • Smart IR
  • Manual Varifocal
  • 2MP Resolution
  • Tri-Axis Gimble
  • Internal cable connections
  • Enhanced Low Light

Datasheets

Specifications

Downloads

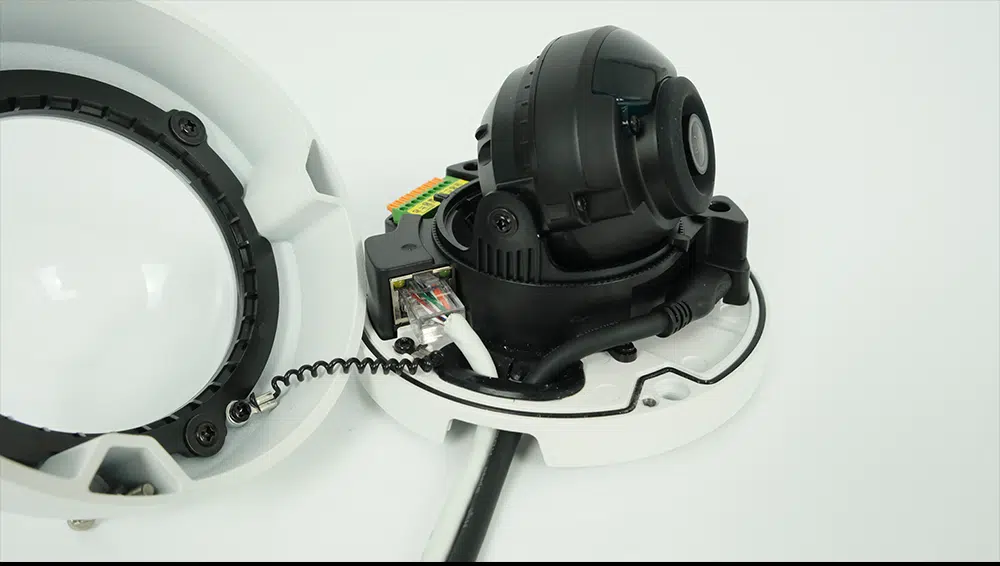

  • Internal Cable Connections

The installers needs have been carefully considered in the design of this product, utilising internal cable connections to aid in the ease of installation, reducing the need for complicated work in impractical installation areas.

  • Enhanced Low Light

This CCTV camera utilises an Enhanced Low Light CMOS sensor with greater light sensitivity, resulting in the camera capturing colour images long after standard CCTV camera shave switched to black and white night mode.

  • True Wide Dynamic Range

With true wide dynamic range, this camera can capture sharp images throughout the entire field of view, even when there are severe differences between light levels.

Datasheet

  • Technical Datasheet 2022
    English
    Format PDF (913 KB)

    Format PDF (913 KB)

Specifications

Dimensions

All meaurements are in mm.

fixed lens compact dome camera

Downloads

  • Technical Datasheet 2022
    English
    Format PDF (913 KB)

    Format PDF (913 KB)

  • Concept Pro Brochure 2022
    English
    Format PDF (27 MB)

    Format PDF (27 MB)
